AC Servo Systems

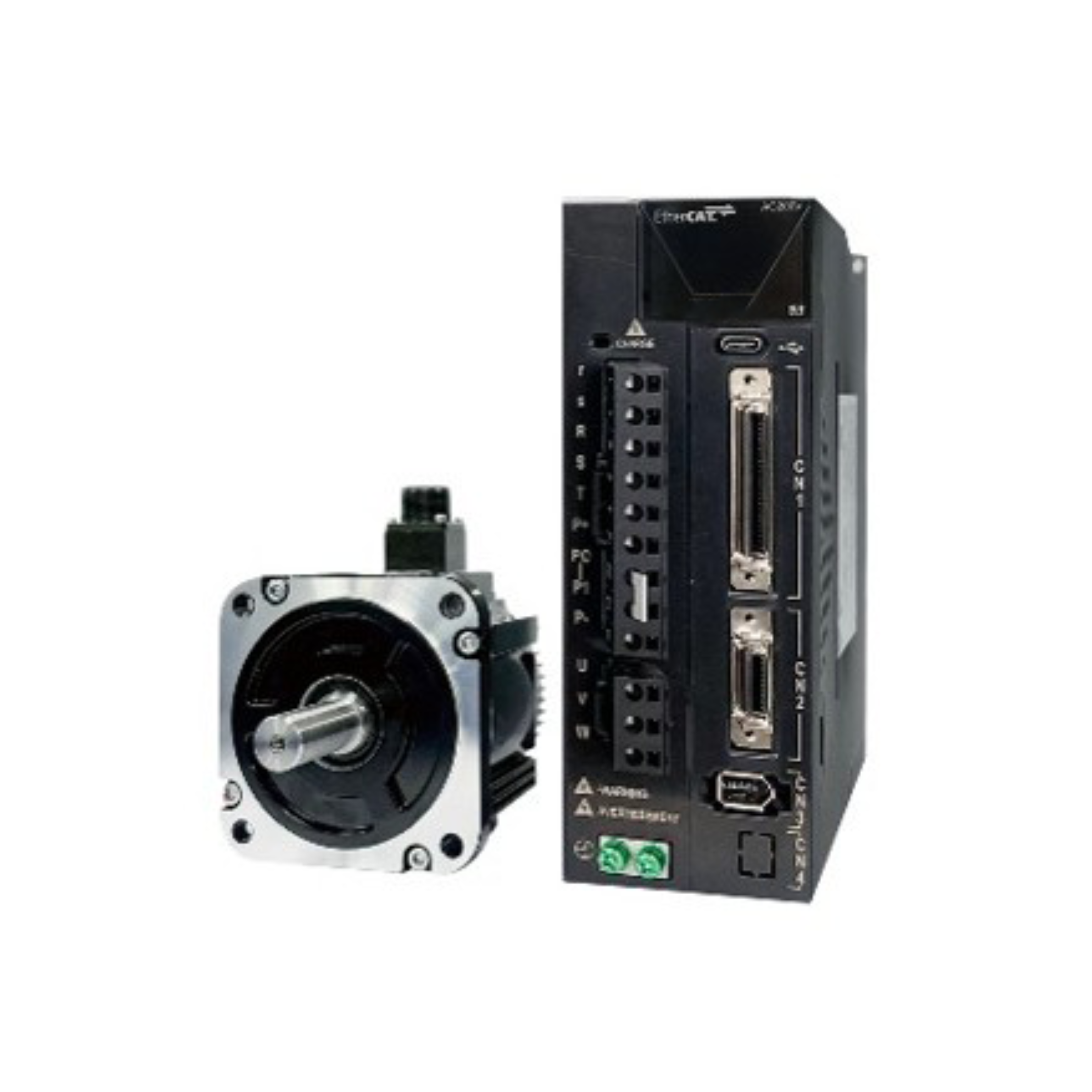

AC Servo Drive & Motor

AC Servo

Designed for high-speed, high-precision automation, the AC servo system supports precise positioning and synchronized multi-axis control. Advanced tuning functions simplify setup and improve system performance.

■ High Precision: Supports up to 23-bit encoder resolution.
■ Fast Response: Bandwidth up to 3.2 kHz reduces settling time.
■ Smart Tuning: Auto gain adjustment and vibration suppression.
■ Predictive Maintenance: Drive-life monitoring supports maintenance planning.
Specifications
JSDG3-E
High-Performance Precision Control
JSDL3
High-Performance General-Purpose Control
220 V Power Range 0.1–3.0 kW 0.1–3.0 kW
380 V Power Range 0.75–7.5 kW 1.0–4.4 kW
Maximum Frequency Response 3.2 kHz 3.0 kHz
Encoder Support Up to 23-bit Up to 23-bit
Communication Interface EtherCAT EtherCAT
Control Modes Position / Speed / Torque Control Position / Speed / Torque Control
Auto-Tuning Supported Supported
Resonance Suppression High- and Low-Frequency Resonance Suppression High- and Low-Frequency Resonance Suppression
Tuning Software PC-link PC-link
Specifications Low-Inertia Servo Motor Medium-Inertia Servo Motor High-Inertia Servo Motor
Series TSS Series TSJ Series TSF Series
Product Positioning Ideal for frequent start-stop cycles and rapid acceleration and deceleration Balances dynamic response and operational stability Ideal for high-inertia loads and smooth operation
Power Range 50 W–5 kW Varies by model Varies by model
Rated Speed 3,000 rpm 2,000 / 3,000 rpm 2,000 rpm
Maximum Speed Up to 6,000 rpm
Encoder 23-bit 23-bit 23-bit
Protection Rating Up to IP65 / IP67 Up to IP65 / IP67
Typical Applications Electronics assembly, pick-and-place equipment, and packaging machinery Machine tools, conveying equipment, and general automation Large machinery, heavy-duty conveying, and industrial equipment
