Aerial Mobility

UAV Powertrain System

UAV

Provides high-efficiency UAV motors and intelligent Electronic Speed Controllers (ESCs), configurable for different payload, endurance, and mission requirements. Enhanced thermal performance supports demanding applications such as land surveying, rescue, and aerial inspection.

■ Made in Taiwan: Ensures consistent quality and process control.
■ Flexible Configuration: Multiple motor and ESC options for different missions.
■ Superior Thermal Performance: Designed for high loads and extended operation.
■ Lightweight Efficiency: Balances power output, weight, and energy use.

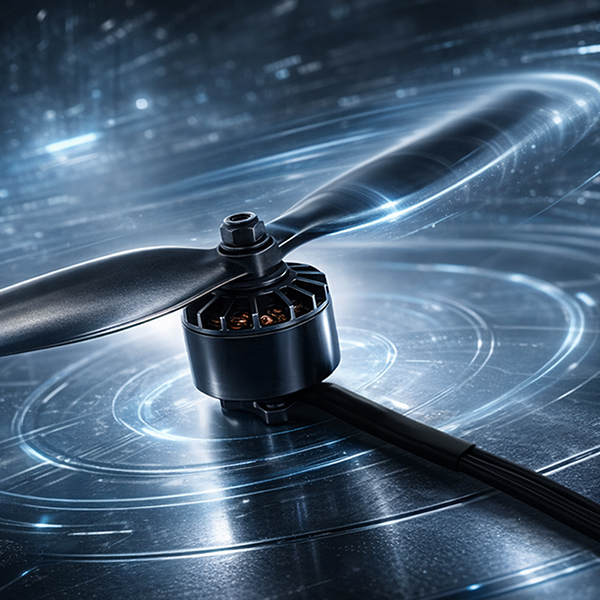

Drone Motor
Drone Motor Series
Specifications Unit 2317
KV800
3115
KV900
3508
KV650
3517
KV760
3522
KV550
5308
KV280
5322
KV240
6013
KV210
10010
KV110
10015
KV90
15516
KV50
Voltage Range VDC 8.4–16.8 23.8–25.2 8.4–16.8 23.8–25.2 23.8–25.2 23.8–25.2 42–52 42–52 42–52 42–52 42–52
Max. Current Arms 19.5 50 22.4 66 45 17.5 80 70 81.6 105 160
Max. Speed rpm 8,700 15,000 7,200 12,000 9,000 6,720 7,200 6,500 5,280 3,800 2,500
Weight g 81.5 126 78.5 181 198 250 515 385 810 1,250 2,800
Drone Electronic Speed Controller (ESC)
Model ES2602006 ES2606006 ES2604012
Input 4–6S LiPo (14.8V–25.2V) 4–6S LiPo (14.8V–25.2V) 8–12S LiPo (30V–52V)
Rated Current 20A 60A 40A
Peak Current 30A (10s) 80A (10s) 80A (10s)
Communication PWM PWM PWM
Size 60 (L) × 28 (W) × 18 (H) mm 69.5 (L) × 28 (W) × 18 (H) mm 83 (L) × 38 (W) × 18 (H) mm
Weight 11g 13g 25g
Recommended
Motor Matching
2317 KV800
3508 KV650
5308 KV280
3115 KV900
3517 KV760
6013 KV210
10010 KV110
Drone Electronic Speed Controller
