Consumer Application

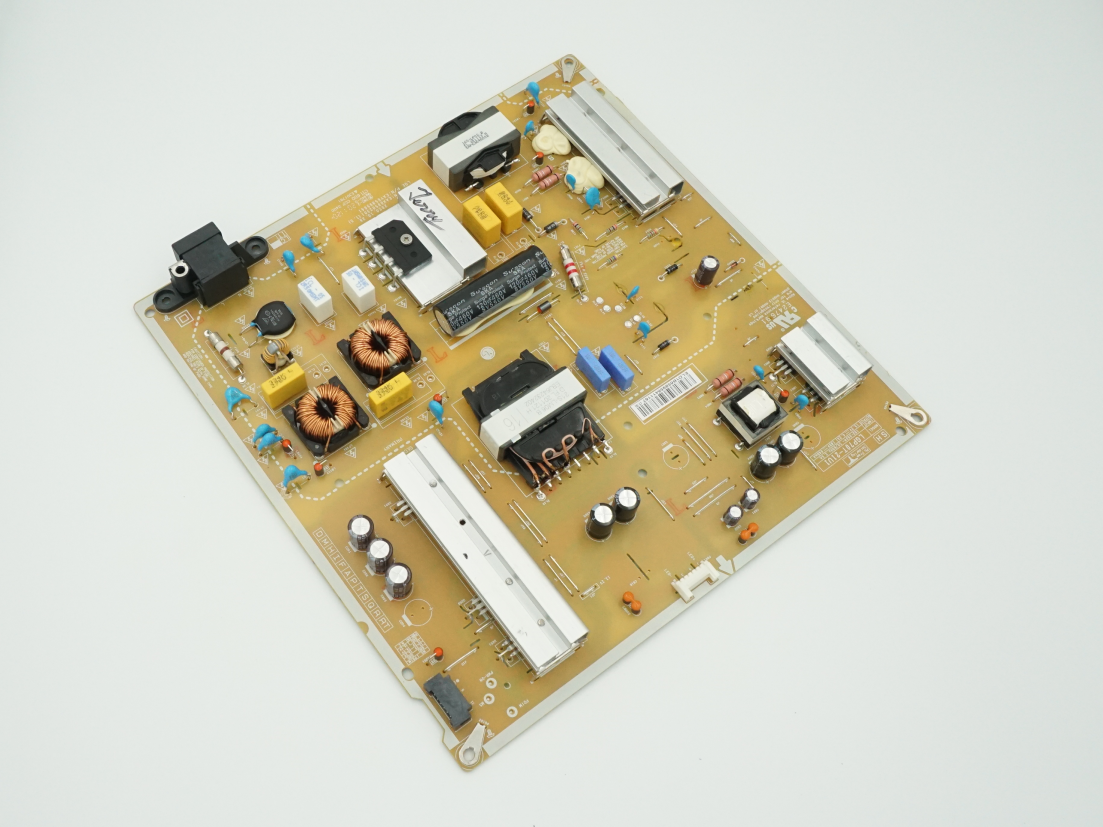

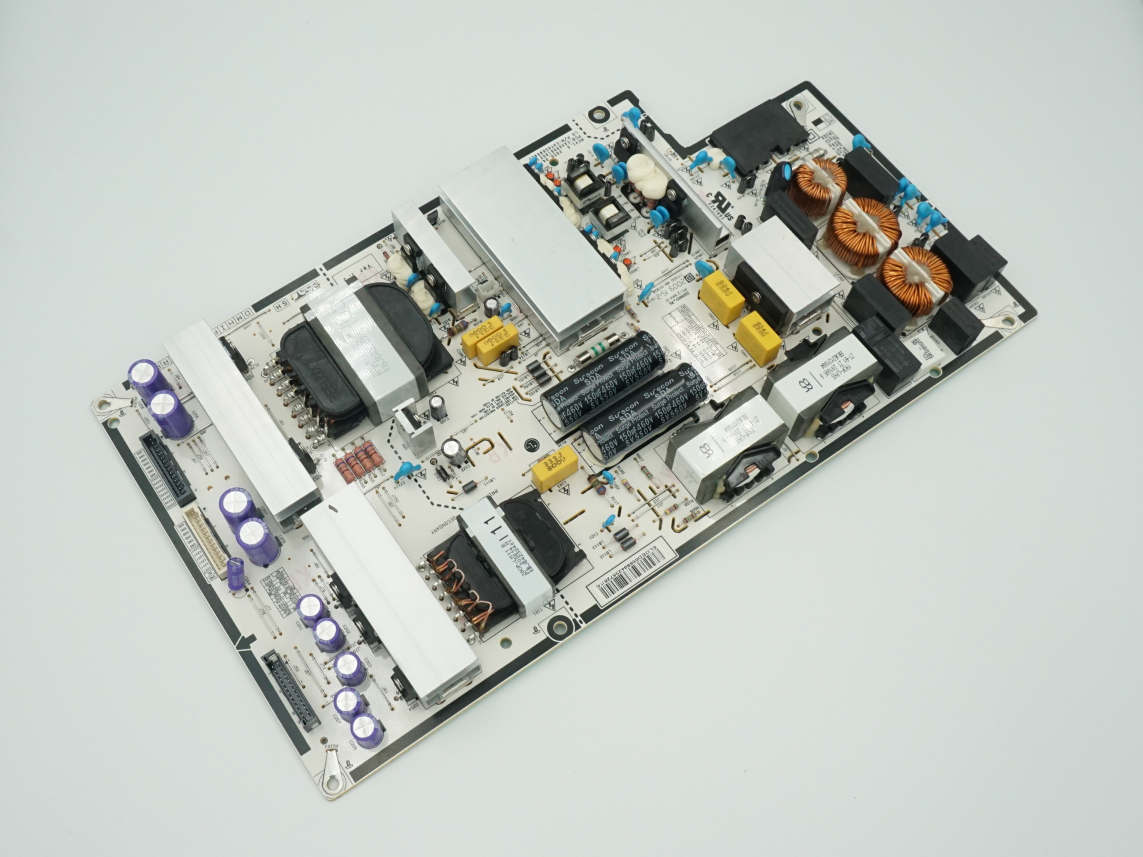

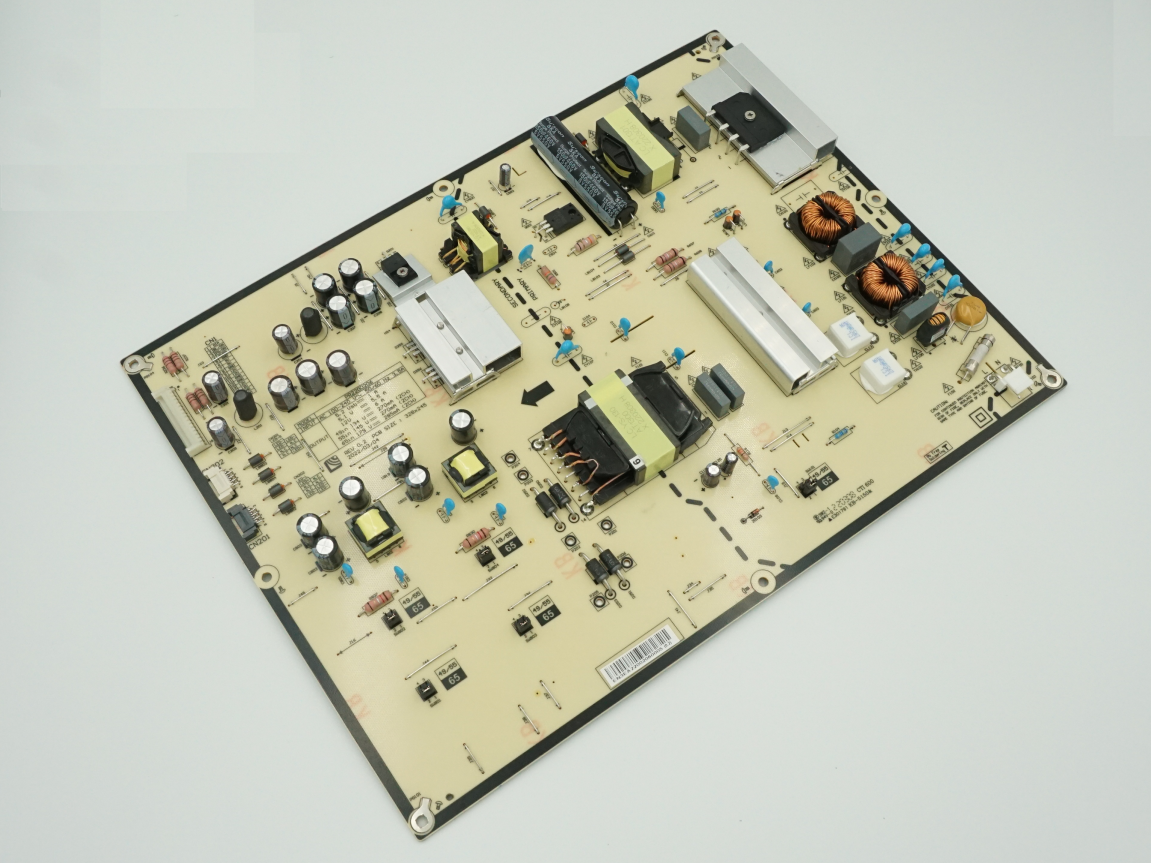

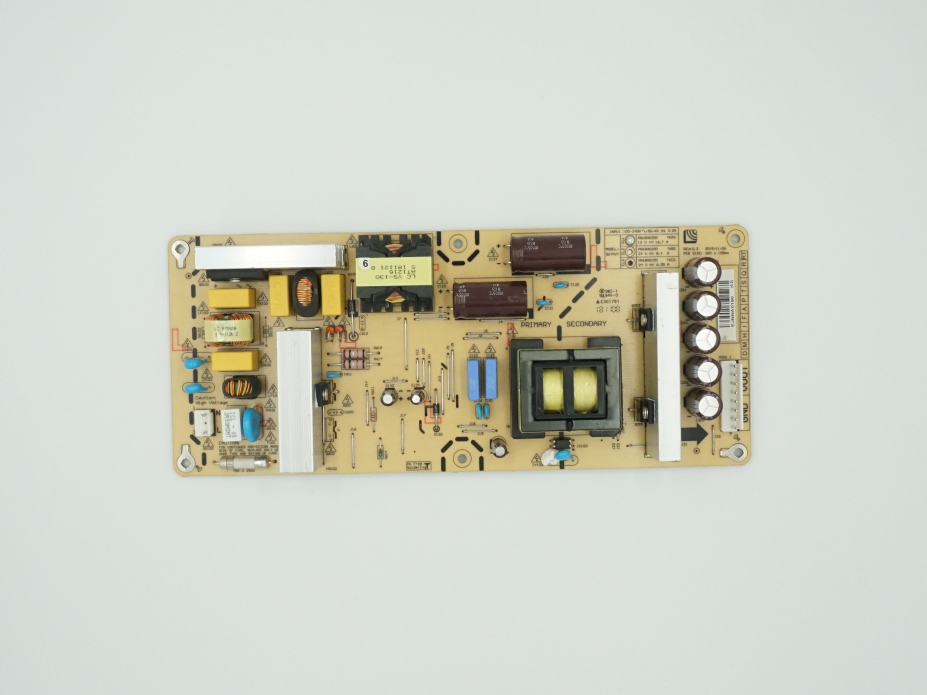

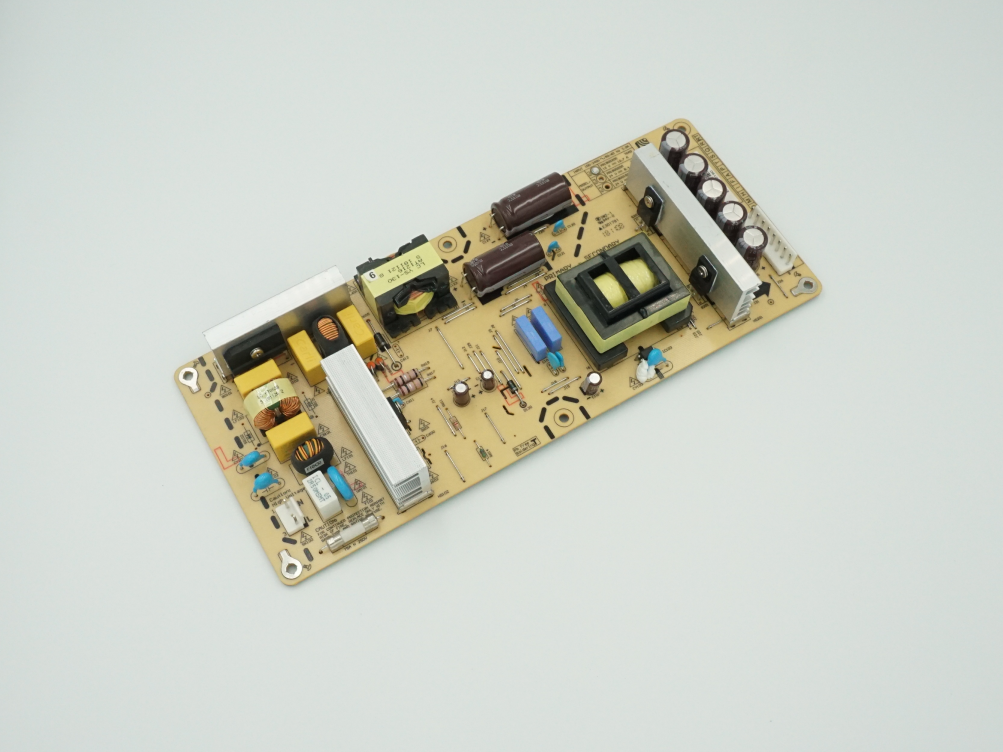

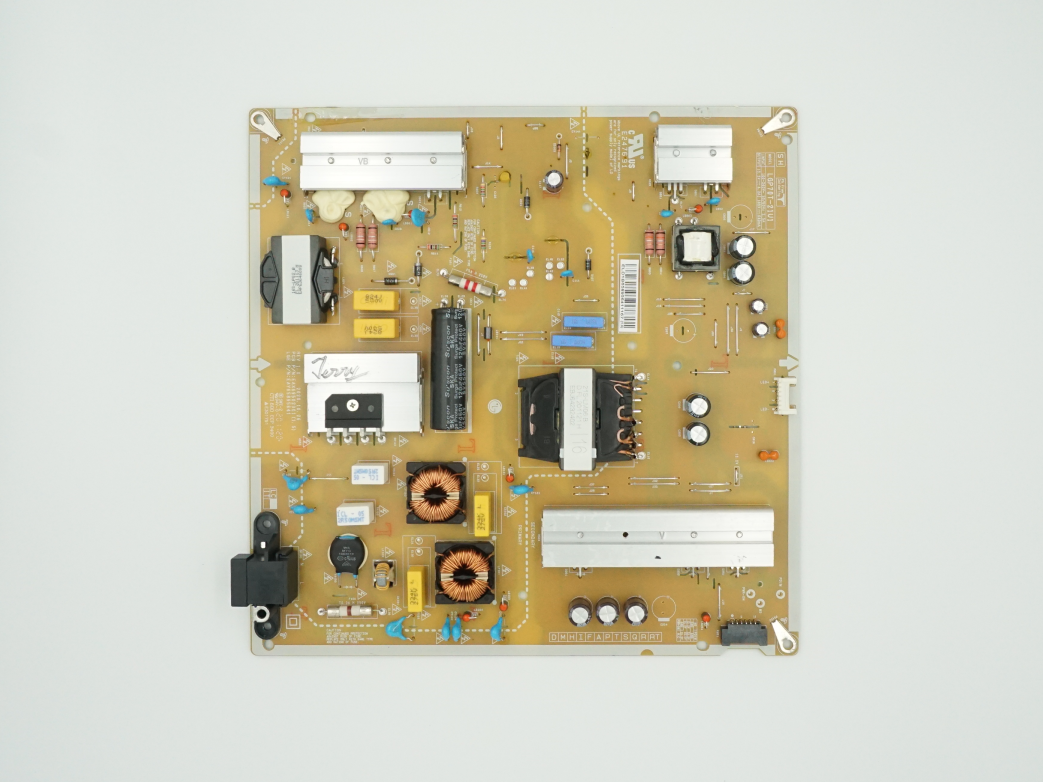

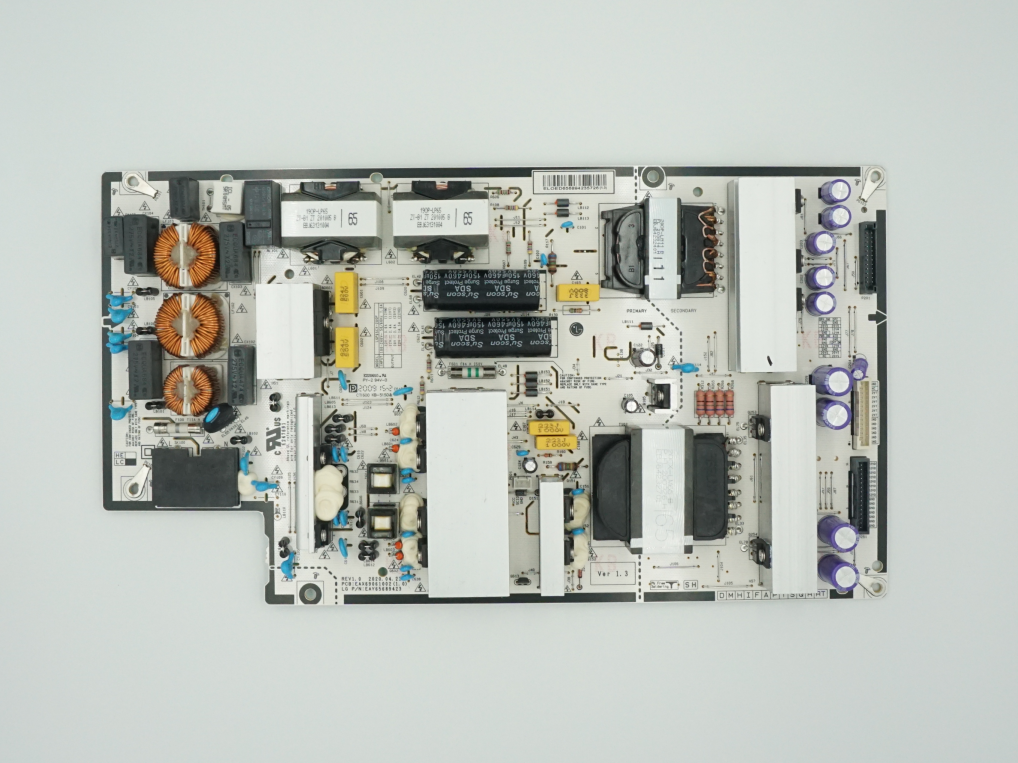

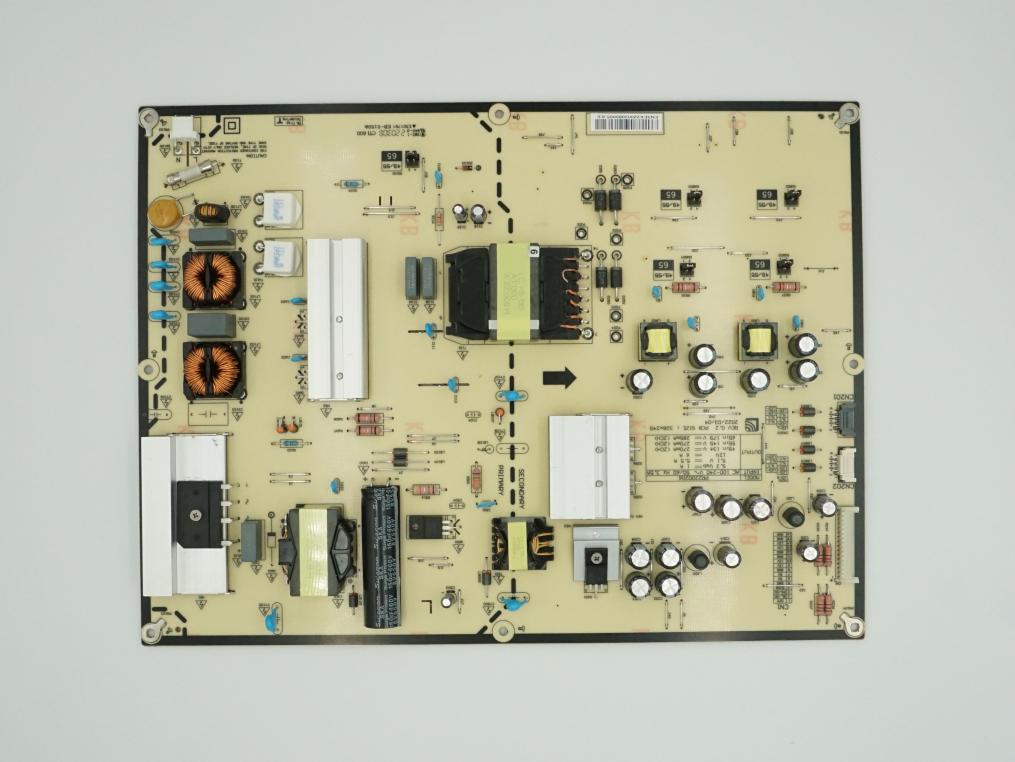

Power Supply Unit (100W~400W)

PR Series 2

Features:
✅ Output Watts:100W~400W
✅ Operating temperature :-10 ~ +45℃ (Fan less)
✅ Conversion efficiency:≧ 88%
✅ Standby power consumption:≦ 0.3W
✅ Compliant with IEC62368-1 specification

Lien Chang Electronic offers comprehensive, efficient, and stable PCB-type power supplies suitable for various products and applications. Our PCB-type power supplies are equipped with robust protection features, including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP). We also provide flexible design and delivery services, allowing us to maintain a cost advantage while ensuring quality.
Our PCB-type power supplies are your ideal choice, delivering optimal power supply solutions for your products.
POWER SUPPLY SPECIFICATION
MODEL   PR Series
OUTPUT DC VOLTAGE Single output / Multi output
TOTAL POWER (min.) 100W~400W
INPUT VOLTAGE RANGE  100 ~ 240VAC +/-10%
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.9 / 230VAC at full load
STANBY POWER under 0.3W / no load
Efficiency 88% min
PROTECTION SHORT CIRCUIT  O
OVER LOAD O
OVER VOLTAGE O
SAFETY & EMC SAFETY STANDARDS meet UL62368-1 & IEC62368-1
EMI Standards CISPR32 Class B
EMS Standards EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
MTBF   >30K hrs  / 25
ENVIRONMENT WORKING TEMP. -10 ~ +45
WORKING HUMIDITY 20 ~ 85% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +80, 10 ~ 95% RH
